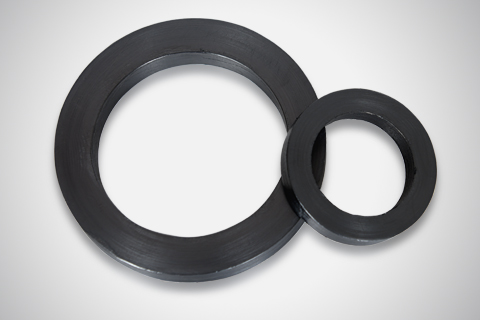

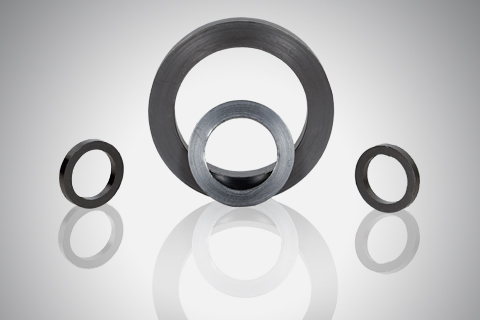

Moulded Graphite Ring

Flexible graphite is manufactured from mineral graphite (expandable flake graphite). As its name indicates, flexible graphite is flexible and conformable, an ideal property as a gasket material. Flexible graphite can also be used in many other thermal, electronic or electrochemical applications.
Graphite Die-formed Ring can be used as valve stem packing or stuffing box packing in vales and pumps. It can also be used as washer/gasket in other applications where heat or chemical resistant material is required.
Main Characteristics and Specs
Flexible and conformable nature
Chemical resistant, compatible with most corrosive chemicals
Heat and flame resistant
Thermal conductive, electrical conductive
Low creep relaxation and no aging
Typical Applications
Die-formed flexible graphite ring is made from high purity homogeneous flexible graphite ribbon, no binders, no fillers.

Main Physical and Chemical Properties

Carbon Content: 99% Min.; Density: 95 - 100 lb/cu.ft.(1.54 - 1.60 g/cc);compatible PH range : 1-14.
Optional Treatment: Oxidation and corrosion inhibitor
